High-Efficiency Fogging for Large Spaces

This machine can dispense up to 60 litres per hour with a vast spray distance of over 20 meters, ensuring rapid and uninterrupted coverage in spacious areas such as hospitals, farms, and warehouses. Its adjustable output and 15-litre chemical tank make it suitable for extended operations, reducing the need for frequent refills and maximizing on-site productivity.

Durable Build with Enhanced Portability

Constructed from robust metal and coated with protective plastic, the machine is designed to withstand challenging environments while remaining portable. The lightweight design and ergonomic shoulder strap make it easy for operators to transport and use, even over extended periods and in varied locations.

Broad Chemical Compatibility and Safe Operation

Supporting both water- and oil-based solutions, this fogger is ideal for multifunctional use across pest control, odor removal, and infection prevention. It includes safety features such as low noise output (below 80 dB) and adjustable humidity for comfortable, efficient performance in different settings-even in 85% RH environments.

FAQ's of Heavy Duty Thermal Fogging Machine:

Q: How do I operate the Heavy Duty Thermal Fogging Machine?

A: To operate the machine, fill the chemical and fuel tanks with the compatible solutions, connect the 12V DC starting battery, and select either manual or automatic control mode. Ignite the unit using the electric, piezo, or ignition coil system. The machine starts in less than 5 seconds, and you can adjust the output as needed for your application.

Q: What types of chemicals are suitable for use with this fogging machine?

A: The HD-TFM2024 model is compatible with both water-based and oil-based solutions, making it ideal for a variety of disinfection, pest control, and sanitization tasks. Always ensure the chemicals used are recommended for thermal fogging equipment to maintain safety and effectiveness.

Q: When should I use this thermal fogger?

A: This fogging machine is best utilized when rapid and extensive disinfection or pest control is necessary-such as during outbreaks, routine sanitation, or odor removal in large public areas, hospitals, warehouses, and agricultural sites. Its high output and fast startup make it suitable for urgent and regularly scheduled treatments alike.

Q: Where can this fogger be effectively deployed?

A: Thanks to its powerful performance and portable design, the HD-TFM2024 can be used indoors and outdoors across various settings including public areas, hospitals, farms, and warehouses. Its adjustable humidity and operation make it suitable even in environments with up to 85% relative humidity.

Q: What is the process for cleaning and maintaining the machine?

A: After each use, empty any remaining chemical solution and fuel, then rinse the chemical tank with clean water (or an appropriate solvent) based on the last chemical used. Regularly check and clean the nozzle, fuel lines, and ignition system to ensure optimal performance and longevity.

Q: How does the fogging machine benefit large-scale disinfection tasks?

A: Its high fogging capacity, extended spray reach, and large chemical tank enable comprehensive coverage of wide areas with minimal downtime. The fast start-up feature and user-friendly controls ensure efficiency and convenience, making it especially valuable for institutions that require swift and regular sanitation or pest control.

Product Brochure

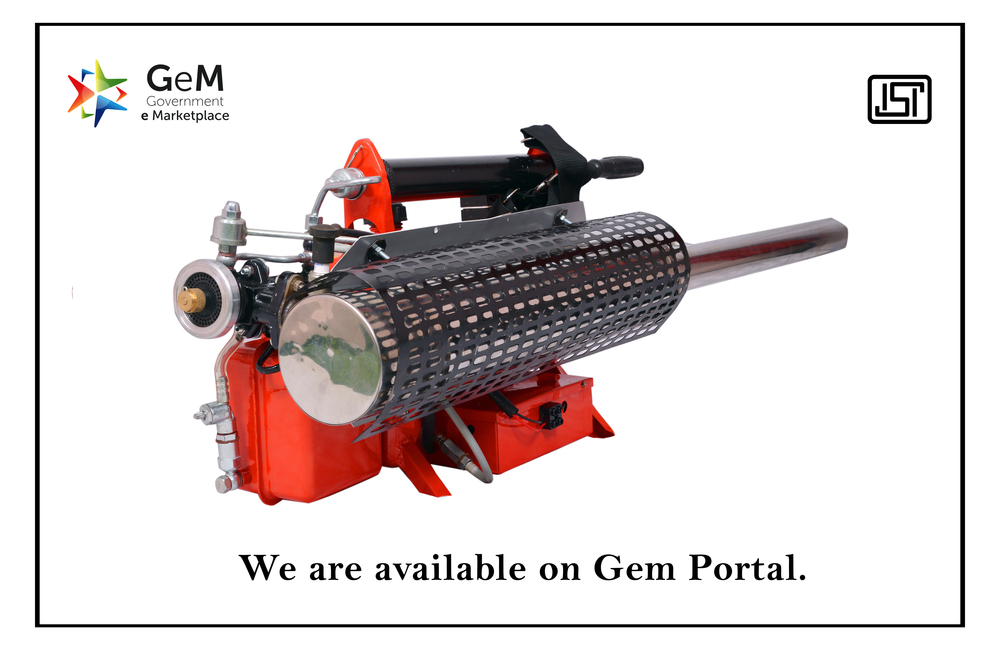

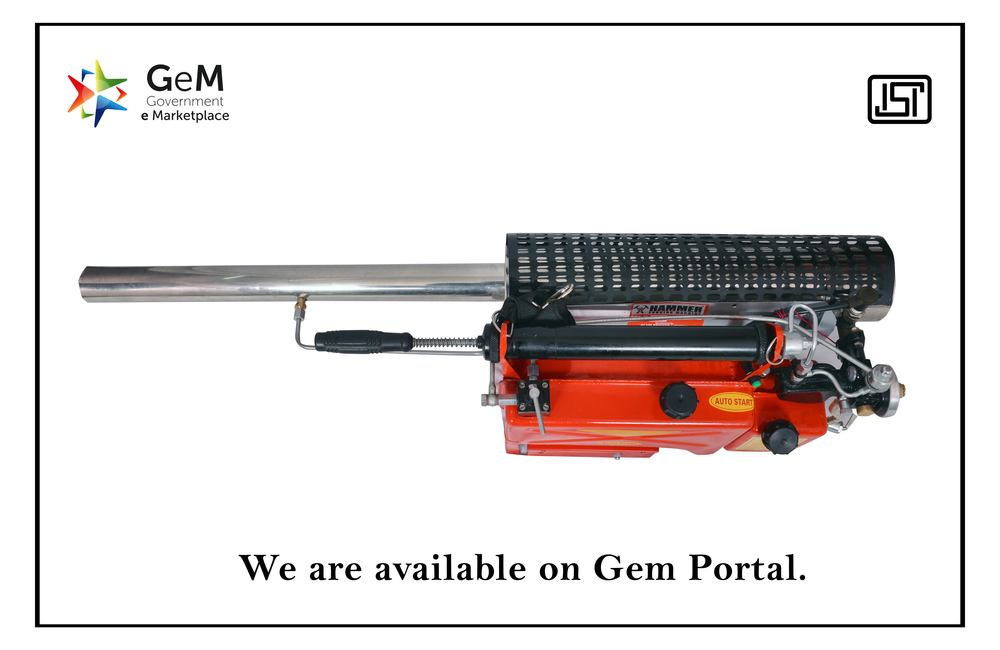

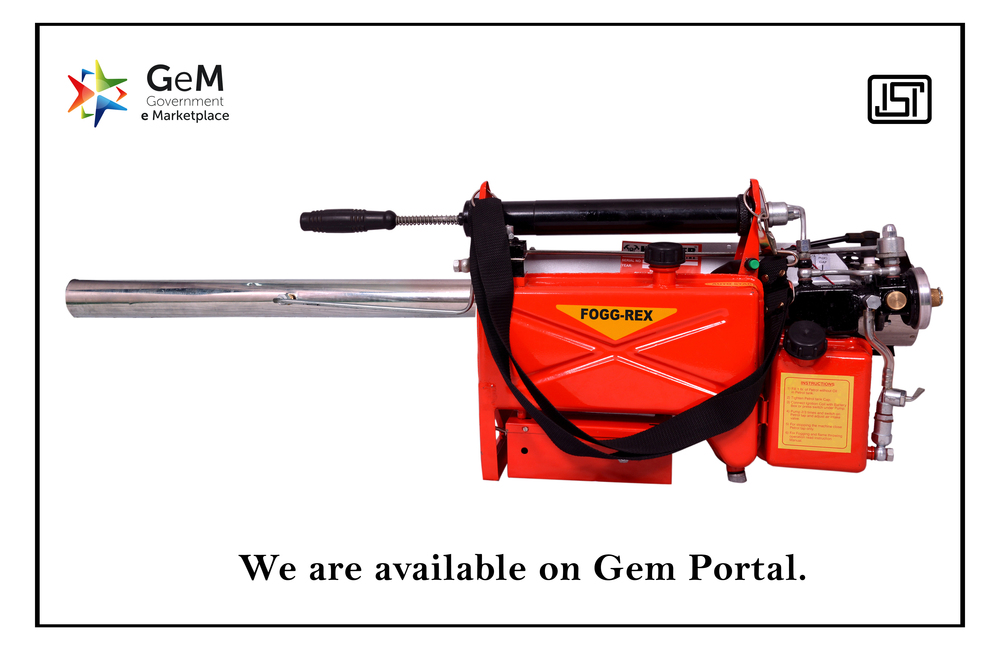

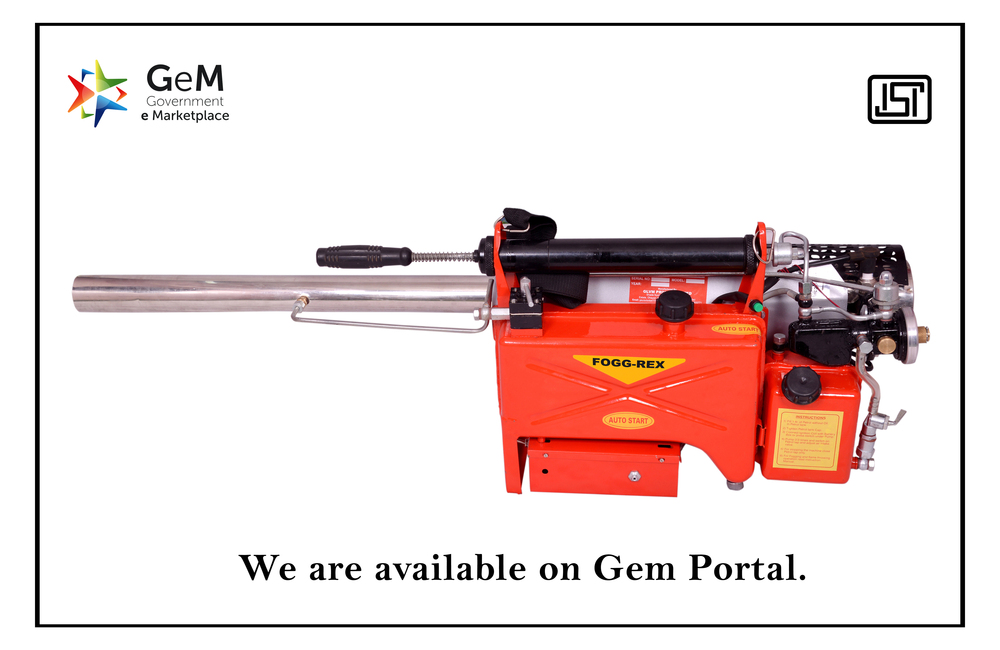

Heavy Duty Thermal Fogging Machine

32500 आईएनआर/Number

मूल्य/उद्धरण प्राप्त करें

उत्पाद विवरण:

नमी% Adjustable output, suitable for 85% RH environments
प्रॉडक्ट टाइप Heavy Duty Thermal Fogging Machine
कंट्रोल मोड Manual/Automatic
उपयोग/अनुप्रयोग Disinfection, Pest Control, Sanitization, Odor Removal (Public Areas, Hospitals, Farms, Warehouses)
मॉडल नं HD-TFM2024
वोल्टेज 12V DC (with starting battery)
टैंक की क्षमता 15 Litres (Chemical); 1.5 Litres (Fuel)
अधिक देखने के लिए क्लिक करें
अपना उत्पाद साझा करें:

वापस कॉल करने का अनुरोध जांच भेजें

मूल्य और मात्रा

मूल्य की इकाई नंबर
माप की इकाई नंबर
न्यूनतम आदेश मात्रा 1

Start-up Time Less than 5 seconds
Particle Size 0.5-50 m
Ignition System Electric/Piezo/Ignition Coil
Chemical Compatibility Water/Oil-based Solutions
Fogging Performance 60 L/h (max.)
Power Consumption 18W
Noise Level Below 80 dB
Material Stainless Steel Body
Mobility Shoulder strap, portable design
Fuel Type Petrol/Kerosene Mix
Spray Distance Over 20 meters
Operating Temperature Range -10C to +45C

उत्पाद की विशेषताएं

वोल्टेज 12V DC (with starting battery)
वज़न 11.5 kg (empty)
टैंक की क्षमता 15 Litres (Chemical); 1.5 Litres (Fuel)
ऑटोमेशन ग्रेड Semi-Automatic
आयाम (एल* डब्ल्यू* एच) 1360 mm x 290 mm x 340 mm
कंट्रोल मोड Manual/Automatic
उपयोग/अनुप्रयोग Disinfection, Pest Control, Sanitization, Odor Removal (Public Areas, Hospitals, Farms, Warehouses)
नमी% Adjustable output, suitable for 85% RH environments
मॉडल नं HD-TFM2024
प्रॉडक्ट टाइप Heavy Duty Thermal Fogging Machine

Start-up Time Less than 5 seconds
Particle Size 0.5-50 m
Ignition System Electric/Piezo/Ignition Coil
Chemical Compatibility Water/Oil-based Solutions
Fogging Performance 60 L/h (max.)
Power Consumption 18W
Noise Level Below 80 dB
Material Stainless Steel Body
Mobility Shoulder strap, portable design
Fuel Type Petrol/Kerosene Mix
Spray Distance Over 20 meters
Operating Temperature Range -10C to +45C

व्यापार सूचना

आपूर्ति की क्षमता 5 प्रति दिन
डिलीवरी का समय 1 हफ़्ता

उत्पाद वर्णन

हम बाजार में प्रीमियम गुणवत्ता ग्रेड थर्मल फॉगिंग मशीनों के प्रमाणित निर्माता और आपूर्तिकर्ता हैं।
